SLB平凸球面透镜形状简单且应用广泛，西格玛光机球面平凸透镜还可以使用可见光，近红外，红外这三种类型的防反射膜。并且可以丰富细化外径尺寸和焦距，从而选择符合您的技术要求的Optosigma透镜。
所属品牌： 日本OptoSigma
日本Optosigma推出了可以用于可见光到近红外波段，且均可以用于成像领域和非成像领域的SLB-P系列，BK7平凸透镜，在sigma透镜中，SLB平凸球面透镜形状简单且应用广泛，西格玛光机球面平凸透镜还可以使用可见光，近红外，红外这三种类型的防反射膜。并且可以丰富细化外径尺寸和焦距，从而选择符合您的技术要求的Optosigma透镜。
西格玛光机BK7平凸球面透镜SLB-P的特点：
|
材质 |
SLB-P：BK7材料 |
|
设计波长 |
546.1nm |
|
折射率 |
BK7：ne=1.159 |
|
镀膜 |
无镀膜：型号末尾N 防反射膜：型号末尾NM,NIR1,NIR2。 |
|
激光损伤阈值 |
防反射膜:4J/cm2 脉宽10ns，重复频率20Hz |
|
有效直径 |
外径的90%，有镀膜时为外径的85%。 |
|
表面质量 |
20-10 |
西格玛光机球面平凸透镜的相关信息：
- 承接定制非标尺寸或焦距的产品
- 承接定制镀特定波长的防反射膜。
- 另外备有校正了色差的消色差透镜（Optosigma透镜中的DLB系列）。
日本optosigma球面平凸透镜SLB-P的注意事项：
- BK7球面平凸透镜有色差，焦距随着波长变化。各波长的焦距请参考网页上的“焦距随波长变化特性数据”确认。
- 射入SLB平凸球面透镜的光线有方向性。请务必从凸面一侧射入平行光。否则球差会变大，焦点光斑会变大，成像会变的模糊。
- 无镀膜产品因sigma透镜的正面和反面都会存在反射损失，所以透过率为90%左右。
Optosigma透镜中SLB-P球面平凸透镜防反射膜的指定方法:
以sigma透镜中的SLB-50.8-200N为例，指定近红外用（633~1064nm）的防反射膜时的命名和规格如下：
|
AR膜类型 |
型号 |
适用波长（nm） |
透过率（%） |
|
可见光谱区 |
SLB-50.8-200NM |
400~700 |
>平均99 |
|
近红外光谱区 |
SLB-50.8-200NIR1 |
633~1064 |
>平均98.5 |
|
红外光谱区 |
SLB-50.8-200NIR2 |
750~1550 |
>平均98.5 |

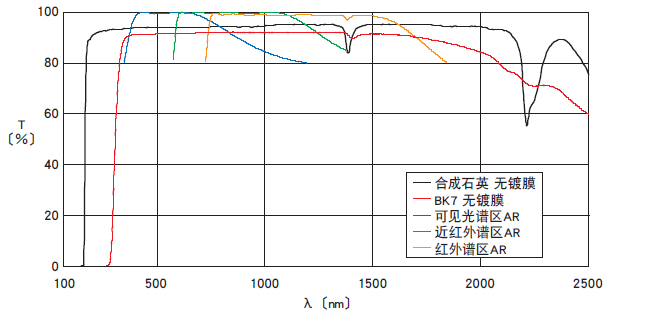

BK7球面平凸透镜的透过率波长特性（参考数据） T：透过率:
由以上曲线图可以看出，在西格玛光机平凸透镜中，BK7平凸球面透镜在250nm~2000nm的波长透过率较好，达到了90%左右。性能较为稳定。
西格玛光机球面平凸透镜SLB-P的外形和尺寸图示：
SigmaKoKi SLB-P系列BK7球面平凸透镜的规格参数表：
Φ5~Φ12.7mm,BK7系列 SLB平凸球面透镜
|
无镀膜 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
型号 |
可见光 |
近红外 |
红外 |
|||||||
|
SLB-05-08P |
M |
IR1 |
IR2 |
φ5 |
8 |
1.4 |
2.3 |
6.5 |
4.15 |
＜3 |
|
SLB-05-10P |
M |
IR1 |
IR2 |
φ5 |
10 |
1.3 |
2.0 |
8.7 |
5.19 |
＜3 |
|
SLB-05-12P |
M |
IR1 |
IR2 |
φ5 |
12 |
1.2 |
1.8 |
10.8 |
6.23 |
＜3 |
|
SLB-05-15P |
M |
IR1 |
IR2 |
φ5 |
15 |
1.2 |
1.6 |
13.9 |
7.79 |
＜3 |
|
SLB-05-20P |
M |
IR1 |
IR2 |
φ5 |
20 |
1.1 |
1.4 |
19.1 |
10.38 |
＜3 |
|
SLB-05-25P |
M |
IR1 |
IR2 |
φ5 |
25 |
1.1 |
1.4 |
24.1 |
12.98 |
＜3 |
|
SLB-05-30P |
M |
IR1 |
IR2 |
φ5 |
30 |
1.1 |
1.3 |
29.1 |
15.57 |
＜3 |
|
SLB-06-08P |
M |
IR1 |
IR2 |
φ6 |
8 |
1.0 |
2.3 |
6.5 |
4.15 |
＜3 |
|
SLB-06-09P |
M |
IR1 |
IR2 |
φ6 |
9 |
1.0 |
2.1 |
7.6 |
4.67 |
＜3 |
|
SLB-06-10P |
M |
IR1 |
IR2 |
φ6 |
10 |
1.0 |
2.0 |
8.7 |
5.19 |
＜3 |
|
SLB-06-12P |
M |
IR1 |
IR2 |
φ6 |
12 |
1.0 |
1.8 |
10.8 |
6.23 |
＜3 |
|
SLB-06-15P |
M |
IR1 |
IR2 |
φ6 |
15 |
1.0 |
1.6 |
13.9 |
7.79 |
＜3 |
|
SLB-06-20P |
M |
IR1 |
IR2 |
φ6 |
20 |
1.0 |
1.4 |
19.1 |
10.38 |
＜3 |
|
SLB-06-25P |
M |
IR1 |
IR2 |
φ6 |
25 |
1.0 |
1.4 |
24.1 |
12.98 |
＜3 |
|
SLB-06-30P |
M |
IR1 |
IR2 |
φ6 |
30 |
1.0 |
1.3 |
29.1 |
15.57 |
＜3 |
|
SLB-07-10P |
M |
IR1 |
IR2 |
φ7 |
10 |
2.0 |
3.4 |
7.8 |
5.19 |
＜3 |
|
SLB-07-12P |
M |
IR1 |
IR2 |
φ7 |
12 |
1.9 |
3.0 |
10.1 |
6.23 |
＜3 |
|
SLB-07-15P |
M |
IR1 |
IR2 |
φ7 |
15 |
1.8 |
2.6 |
13.3 |
7.79 |
＜3 |
|
SLB-07-20P |
M |
IR1 |
IR2 |
φ7 |
20 |
1.7 |
2.3 |
18.5 |
10.38 |
＜3 |
|
SLB-07-25P |
M |
IR1 |
IR2 |
φ7 |
25 |
1.7 |
2.1 |
23.6 |
12.98 |
＜3 |
|
SLB-07-30P |
M |
IR1 |
IR2 |
φ7 |
30 |
1.6 |
2.0 |
28.7 |
15.57 |
＜3 |
|
SLB-07-40P |
M |
IR1 |
IR2 |
φ7 |
40 |
1.6 |
1.9 |
38.8 |
20.76 |
＜3 |
|
SLB-07-50P |
M |
IR1 |
IR2 |
φ7 |
50 |
1.6 |
1.8 |
48.8 |
25.95 |
＜3 |
|
SLB-08-10P |
M |
IR1 |
IR2 |
φ8 |
10 |
1.5 |
3.4 |
7.8 |
5.19 |
＜3 |
|
SLB-08-12P |
M |
IR1 |
IR2 |
φ8 |
12 |
1.5 |
3.0 |
10.1 |
6.23 |
＜3 |
|
SLB-08-15P |
M |
IR1 |
IR2 |
φ8 |
15 |
1.5 |
2.6 |
13.3 |
7.79 |
＜3 |
|
SLB-08-20P |
M |
IR1 |
IR2 |
φ8 |
20 |
1.5 |
2.3 |
18.5 |
10.38 |
＜3 |
|
SLB-08-25P |
M |
IR1 |
IR2 |
φ8 |
25 |
1.5 |
2.1 |
23.6 |
12.98 |
＜3 |
|
SLB-08-30P |
M |
IR1 |
IR2 |
φ8 |
30 |
1.5 |
2.0 |
28.7 |
15.57 |
＜3 |
|
SLB-08-40P |
M |
IR1 |
IR2 |
φ8 |
40 |
1.5 |
1.9 |
38.8 |
20.76 |
＜3 |
|
SLB-08-50P |
M |
IR1 |
IR2 |
φ8 |
50 |
1.5 |
1.8 |
48.8 |
25.95 |
＜3 |
|
SLB-10-15P |
M |
IR1 |
IR2 |
φ10 |
15 |
2.0 |
3.8 |
12.5 |
7.79 |
＜1 |
|
SLB-10-20P |
M |
IR1 |
IR2 |
φ10 |
20 |
2.0 |
3.3 |
17.8 |
10.38 |
＜1 |
|
SLB-10-25P |
M |
IR1 |
IR2 |
φ10 |
25 |
2.0 |
3.0 |
23.0 |
12.98 |
＜1 |
|
SLB-10-30P |
M |
IR1 |
IR2 |
φ10 |
30 |
2.0 |
2.8 |
28.1 |
15.57 |
＜1 |
|
SLB-10-40P |
M |
IR1 |
IR2 |
φ10 |
40 |
2.0 |
2.6 |
38.3 |
20.76 |
＜1 |
|
SLB-10-50P |
M |
IR1 |
IR2 |
φ10 |
50 |
2.0 |
2.5 |
48.4 |
25.95 |
＜1 |
|
SLB-10-60P |
M |
IR1 |
IR2 |
φ10 |
60 |
2.0 |
2.4 |
58.4 |
31.14 |
＜1 |
|
SLB-10-70P |
M |
IR1 |
IR2 |
φ10 |
70 |
2.0 |
2.3 |
68.5 |
36.33 |
＜1 |
|
SLB-10-80P |
M |
IR1 |
IR2 |
φ10 |
80 |
2.0 |
2.3 |
78.5 |
41.52 |
＜1 |
|
SLB-10-100P |
M |
IR1 |
IR2 |
φ10 |
100 |
2.0 |
2.2 |
98.5 |
51.90 |
＜1 |
|
SLB-12.7-20P |
M |
IR1 |
IR2 |
φ12.7 |
20 |
2.0 |
4.2 |
17.2 |
10.38 |
＜1 |
|
SLB-12.7-25P |
M |
IR1 |
IR2 |
φ12.7 |
25 |
2.0 |
3.7 |
22.6 |
12.98 |
＜1 |
|
SLB-12.7-30P |
M |
IR1 |
IR2 |
φ12.7 |
30 |
2.0 |
3.4 |
27.8 |
15.57 |
＜1 |
|
SLB-12.7-40P |
M |
IR1 |
IR2 |
φ12.7 |
40 |
2.0 |
3.0 |
38.0 |
20.76 |
＜1 |
|
SLB-12.7-50P |
M |
IR1 |
IR2 |
φ12.7 |
50 |
2.0 |
2.8 |
48.2 |
25.95 |
＜1 |
|
SLB-12.7-60P |
M |
IR1 |
IR2 |
φ12.7 |
60 |
2.0 |
2.7 |
58.3 |
31.14 |
＜1 |
|
SLB-12.7-70P |
M |
IR1 |
IR2 |
φ12.7 |
70 |
2.0 |
2.6 |
68.3 |
36.33 |
＜1 |
|
SLB-12.7-80P |
M |
IR1 |
IR2 |
φ12.7 |
80 |
2.0 |
2.5 |
78.4 |
41.52 |
＜1 |
|
SLB-12.7-100P |
M |
IR1 |
IR2 |
φ12.7 |
100 |
2.0 |
2.4 |
98.5 |
51.90 |
＜1 |
Φ15~Φ25.4mm, BK7系列 Optosigma平凸透镜
|
无镀膜 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
型号 |
可见光 |
近红外 |
红外 |
|||||||
|
SLB-15-20P |
M |
IR1 |
IR2 |
φ15 |
20 |
2.0 |
5.2 |
16.6 |
10.38 |
＜1 |
|
SLB-15-25P |
M |
IR1 |
IR2 |
φ15 |
25 |
2.0 |
4.4 |
22.1 |
12.98 |
＜1 |
|
SLB-15-30P |
M |
IR1 |
IR2 |
φ15 |
30 |
2.0 |
3.9 |
27.4 |
15.57 |
＜1 |
|
SLB-15-40P |
M |
IR1 |
IR2 |
φ15 |
40 |
2.0 |
3.4 |
37.8 |
20.76 |
＜1 |
|
SLB-15-50P |
M |
IR1 |
IR2 |
φ15 |
50 |
2.0 |
3.1 |
48.0 |
25.95 |
＜1 |
|
SLB-15-60P |
M |
IR1 |
IR2 |
φ15 |
60 |
2.0 |
2.9 |
58.1 |
31.14 |
＜1 |
|
SLB-15-70P |
M |
IR1 |
IR2 |
φ15 |
70 |
2.0 |
2.8 |
68.2 |
36.33 |
＜1 |
|
SLB-15-80P |
M |
IR1 |
IR2 |
φ15 |
80 |
2.0 |
2.7 |
78.2 |
41.52 |
＜1 |
|
SLB-15-90P |
M |
IR1 |
IR2 |
φ15 |
90 |
2.0 |
2.6 |
88.3 |
46.71 |
＜1 |
|
SLB-15-100P |
M |
IR1 |
IR2 |
φ15 |
100 |
2.0 |
2.5 |
98.3 |
51.90 |
＜1 |
|
SLB-15-120P |
M |
IR1 |
IR2 |
φ15 |
120 |
2.0 |
2.5 |
118.4 |
62.28 |
＜1 |
|
SLB-15-150P |
M |
IR1 |
IR2 |
φ15 |
150 |
2.0 |
2.4 |
148.4 |
77.85 |
＜1 |
|
SLB-20-25P |
M |
IR1 |
IR2 |
φ20 |
25 |
2.0 |
6.7 |
20.6 |
12.98 |
＜1 |
|
SLB-20-30P |
M |
IR1 |
IR2 |
φ20 |
30 |
2.0 |
5.6 |
26.3 |
15.57 |
＜1 |
|
SLB-20-40P |
M |
IR1 |
IR2 |
φ20 |
40 |
2.0 |
4.6 |
37.0 |
20.76 |
＜1 |
|
SLB-20-50P |
M |
IR1 |
IR2 |
φ20 |
50 |
2.0 |
4.0 |
47.4 |
25.95 |
＜1 |
|
SLB-20-60P |
M |
IR1 |
IR2 |
φ20 |
60 |
2.0 |
3.6 |
57.6 |
31.14 |
＜1 |
|
SLB-20-70P |
M |
IR1 |
IR2 |
φ20 |
70 |
2.0 |
3.4 |
67.8 |
36.33 |
＜1 |
|
SLB-20-80P |
M |
IR1 |
IR2 |
φ20 |
80 |
2.0 |
3.2 |
77.9 |
41.52 |
＜1 |
|
SLB-20-90P |
M |
IR1 |
IR2 |
φ20 |
90 |
2.0 |
3.1 |
88.0 |
46.71 |
＜1 |
|
SLB-20-100P |
M |
IR1 |
IR2 |
φ20 |
100 |
2.0 |
3.0 |
98.0 |
51.90 |
＜1 |
|
SLB-20-120P |
M |
IR1 |
IR2 |
φ20 |
120 |
2.0 |
2.8 |
118.2 |
62.28 |
＜1 |
|
SLB-20-150P |
M |
IR1 |
IR2 |
φ20 |
150 |
2.0 |
2.6 |
148.3 |
77.85 |
＜1 |
|
SLB-20-170P |
M |
IR1 |
IR2 |
φ20 |
170 |
2.0 |
2.6 |
168.2 |
88.23 |
＜1 |
|
SLB-20-200P |
M |
IR1 |
IR2 |
φ20 |
200 |
2.0 |
2.5 |
198.4 |
103.80 |
＜1 |
|
SLB-25-30P |
M |
IR1 |
IR2 |
φ25 |
30 |
2.0 |
8.3 |
24.5 |
15.57 |
＜1 |
|
SLB-25-35P |
M |
IR1 |
IR2 |
φ25 |
35 |
2.0 |
7.0 |
30.4 |
18.17 |
＜1 |
|
SLB-25-40P |
M |
IR1 |
IR2 |
φ25 |
40 |
2.0 |
6.2 |
36.0 |
20.76 |
＜1 |
|
SLB-25-50P |
M |
IR1 |
IR2 |
φ25 |
50 |
2.0 |
5.2 |
46.6 |
25.95 |
＜1 |
|
SLB-25-60P |
M |
IR1 |
IR2 |
φ25 |
60 |
2.0 |
4.6 |
57.0 |
31.14 |
＜1 |
|
SLB-25-70P |
M |
IR1 |
IR2 |
φ25 |
70 |
2.0 |
4.2 |
67.2 |
36.33 |
＜1 |
|
SLB-25-80P |
M |
IR1 |
IR2 |
φ25 |
80 |
2.0 |
3.9 |
77.4 |
41.52 |
＜1 |
|
SLB-25-90P |
M |
IR1 |
IR2 |
φ25 |
90 |
2.0 |
3.7 |
87.6 |
46.71 |
＜1 |
|
SLB-25-100P |
M |
IR1 |
IR2 |
φ25 |
100 |
2.0 |
3.5 |
97.7 |
51.90 |
＜1 |
|
SLB-25-120P |
M |
IR1 |
IR2 |
φ25 |
120 |
2.0 |
3.3 |
117.8 |
62.28 |
＜1 |
|
SLB-25-150P |
M |
IR1 |
IR2 |
φ25 |
150 |
2.0 |
3.0 |
148.0 |
77.85 |
＜1 |
|
SLB-25-170P |
M |
IR1 |
IR2 |
φ25 |
170 |
2.0 |
2.9 |
168.1 |
88.23 |
＜1 |
|
SLB-25-200P |
M |
IR1 |
IR2 |
φ25 |
200 |
2.0 |
2.8 |
198.2 |
103.80 |
＜1 |
|
SLB-25-220P |
M |
IR1 |
IR2 |
φ25 |
220 |
2.0 |
2.7 |
218.2 |
114.18 |
＜1 |
|
SLB-25-250P |
M |
IR1 |
IR2 |
φ25 |
250 |
2.0 |
2.6 |
248.3 |
129.75 |
＜1 |
|
SLB-25.4-30P |
M |
IR1 |
IR2 |
φ25.4 |
30 |
1.7 |
8.3 |
24.5 |
15.57 |
＜1 |
|
SLB-25.4-35P |
M |
IR1 |
IR2 |
φ25.4 |
35 |
1.8 |
7.0 |
30.4 |
18.17 |
＜1 |
|
SLB-25.4-40P |
M |
IR1 |
IR2 |
φ25.4 |
40 |
1.9 |
6.2 |
36.0 |
20.76 |
＜1 |
|
SLB-25.4-50P |
M |
IR1 |
IR2 |
φ25.4 |
50 |
1.9 |
5.2 |
46.6 |
25.95 |
＜1 |
|
SLB-25.4-60P |
M |
IR1 |
IR2 |
φ25.4 |
60 |
1.9 |
4.6 |
57.0 |
31.14 |
＜1 |
|
SLB-25.4-70P |
M |
IR1 |
IR2 |
φ25.4 |
70 |
1.9 |
4.2 |
67.2 |
36.33 |
＜1 |
|
SLB-25.4-80P |
M |
IR1 |
IR2 |
φ25.4 |
80 |
1.9 |
3.9 |
77.4 |
41.52 |
＜1 |
|
SLB-25.4-90P |
M |
IR1 |
IR2 |
φ25.4 |
90 |
1.9 |
3.7 |
87.6 |
46.71 |
＜1 |
|
SLB-25.4-100P |
M |
IR1 |
IR2 |
φ25.4 |
100 |
1.9 |
3.5 |
97.7 |
51.90 |
＜1 |
|
SLB-25.4-120P |
M |
IR1 |
IR2 |
φ25.4 |
120 |
2.0 |
3.3 |
117.8 |
62.28 |
＜1 |
|
SLB-25.4-150P |
M |
IR1 |
IR2 |
φ25.4 |
150 |
2.0 |
3.0 |
148.0 |
77.85 |
＜1 |
|
SLB-25.4-170P |
M |
IR1 |
IR2 |
φ25.4 |
170 |
2.0 |
2.9 |
168.1 |
88.23 |
＜1 |
|
SLB-25.4-200P |
M |
IR1 |
IR2 |
φ25.4 |
200 |
2.0 |
2.8 |
198.2 |
103.80 |
＜1 |
|
SLB-25.4-250P |
M |
IR1 |
IR2 |
φ25.4 |
250 |
2.0 |
2.6 |
248.3 |
129.75 |
＜1 |
|
SLB-25.4-300P |
M |
IR1 |
IR2 |
φ25.4 |
300 |
2.0 |
2.5 |
298.4 |
155.70 |
＜3 |
|
SLB-25.4-500P |
M |
IR1 |
IR2 |
φ25.4 |
500 |
2.0 |
2.3 |
498.4 |
259.50 |
＜3 |
|
SLB-25.4-700P |
M |
IR1 |
IR2 |
φ25.4 |
700 |
2.0 |
2.2 |
698.5 |
363.30 |
＜3 |
|
SLB-25.4-1000P |
M |
IR1 |
IR2 |
φ25.4 |
1000 |
2.0 |
2.2 |
998.5 |
519.00 |
＜3 |
Φ30~Φ40mm BK7系列 Optosigma平凸透镜
|
无镀膜 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
型号 |
可见光 |
近红外 |
红外 |
|||||||
|
SLB-30-35P |
M |
IR1 |
IR2 |
φ30 |
35 |
2.0 |
9.9 |
28.5 |
18.17 |
＜1 |
|
SLB-30-40P |
M |
IR1 |
IR2 |
φ30 |
40 |
2.0 |
8.4 |
34.5 |
20.76 |
＜1 |
|
SLB-30-50P |
M |
IR1 |
IR2 |
φ30 |
50 |
2.0 |
6.8 |
45.5 |
25.95 |
＜1 |
|
SLB-30-60P |
M |
IR1 |
IR2 |
φ30 |
60 |
2.0 |
5.9 |
56.1 |
31.14 |
＜1 |
|
SLB-30-70P |
M |
IR1 |
IR2 |
φ30 |
70 |
2.0 |
5.2 |
66.5 |
36.33 |
＜1 |
|
SLB-30-80P |
M |
IR1 |
IR2 |
φ30 |
80 |
2.0 |
4.8 |
76.8 |
41.52 |
＜1 |
|
SLB-30-90P |
M |
IR1 |
IR2 |
φ30 |
90 |
2.0 |
4.5 |
87.1 |
46.71 |
＜1 |
|
SLB-30-100P |
M |
IR1 |
IR2 |
φ30 |
100 |
2.0 |
4.2 |
97.2 |
51.90 |
＜1 |
|
SLB-30-120P |
M |
IR1 |
IR2 |
φ30 |
120 |
2.0 |
3.8 |
117.5 |
62.28 |
＜1 |
|
SLB-30-150P |
M |
IR1 |
IR2 |
φ30 |
150 |
2.0 |
3.5 |
147.7 |
77.85 |
＜1 |
|
SLB-30-170P |
M |
IR1 |
IR2 |
φ30 |
170 |
2.0 |
3.3 |
167.8 |
88.23 |
＜1 |
|
SLB-30-200P |
M |
IR1 |
IR2 |
φ30 |
200 |
2.0 |
3.1 |
198.0 |
103.80 |
＜1 |
|
SLB-30-220P |
M |
IR1 |
IR2 |
φ30 |
220 |
2.0 |
3.0 |
218.0 |
114.18 |
＜1 |
|
SLB-30-250P |
M |
IR1 |
IR2 |
φ30 |
250 |
2.0 |
2.9 |
248.1 |
129.75 |
＜1 |
|
SLB-30-300P |
M |
IR1 |
IR2 |
φ30 |
300 |
2.0 |
2.7 |
298.2 |
155.70 |
＜1 |
|
SLB-30-350P |
M |
IR1 |
IR2 |
φ30 |
350 |
2.0 |
2.6 |
348.3 |
181.65 |
＜3 |
|
SLB-30-400P |
M |
IR1 |
IR2 |
φ30 |
400 |
2.0 |
2.5 |
398.2 |
207.60 |
＜3 |
|
SLB-30-450P |
M |
IR1 |
IR2 |
φ30 |
450 |
2.0 |
2.5 |
448.4 |
233.55 |
＜3 |
|
SLB-30-500P |
M |
IR1 |
IR2 |
φ30 |
500 |
2.0 |
2.4 |
498.4 |
259.50 |
＜3 |
|
SLB-30-600P |
M |
IR1 |
IR2 |
φ30 |
600 |
2.0 |
2.4 |
598.4 |
311.40 |
＜3 |
|
SLB-30-700P |
M |
IR1 |
IR2 |
φ30 |
700 |
2.0 |
2.3 |
698.5 |
363.30 |
＜3 |
|
SLB-30-800P |
M |
IR1 |
IR2 |
φ30 |
800 |
2.0 |
2.3 |
798.5 |
415.20 |
＜3 |
|
SLB-30-900P |
M |
IR1 |
IR2 |
φ30 |
900 |
2.0 |
2.2 |
898.5 |
467.10 |
＜3 |
|
SLB-30-1000P |
M |
IR1 |
IR2 |
φ30 |
1000 |
2.0 |
2.2 |
998.5 |
519.00 |
＜3 |
|
SLB-30-1200P |
M |
IR1 |
IR2 |
φ30 |
1200 |
2.0 |
2.2 |
1198.6 |
622.80 |
＜3 |
|
SLB-30-1500P |
M |
IR1 |
IR2 |
φ30 |
1500 |
2.0 |
2.1 |
1498.6 |
778.50 |
＜3 |
|
SLB-30-2000P |
M |
IR1 |
IR2 |
φ30 |
2000 |
2.0 |
2.1 |
1998.6 |
1038.00 |
＜3 |
|
SLB-30-2500P |
M |
IR1 |
IR2 |
φ30 |
2500 |
2.0 |
2.1 |
2498.6 |
1297.50 |
＜3 |
|
SLB-30-3000P |
M |
IR1 |
IR2 |
φ30 |
3000 |
2.0 |
2.1 |
2998.6 |
1557.00 |
＜3 |
|
SLB-30-4000P |
M |
IR1 |
IR2 |
φ30 |
4000 |
2.0 |
2.1 |
3998.6 |
2076.00 |
＜3 |
|
SLB-30-5000P |
M |
IR1 |
IR2 |
φ30 |
5000 |
2.0 |
2.1 |
4998.6 |
2595.00 |
＜3 |
|
SLB-40-50P |
M |
IR1 |
IR2 |
φ40 |
50 |
2.0 |
11.4 |
42.5 |
25.95 |
＜1 |
|
SLB-40-60P |
M |
IR1 |
IR2 |
φ40 |
60 |
2.0 |
9.3 |
53.9 |
31.14 |
＜1 |
|
SLB-40-70P |
M |
IR1 |
IR2 |
φ40 |
70 |
2.0 |
8.0 |
64.7 |
36.33 |
＜1 |
|
SLB-40-80P |
M |
IR1 |
IR2 |
φ40 |
80 |
2.0 |
7.1 |
75.3 |
41.52 |
＜1 |
|
SLB-40-90P |
M |
IR1 |
IR2 |
φ40 |
90 |
2.0 |
6.5 |
85.7 |
46.71 |
＜1 |
|
SLB-40-100P |
M |
IR1 |
IR2 |
φ40 |
100 |
2.0 |
6.0 |
96.0 |
51.90 |
＜1 |
|
SLB-40-120P |
M |
IR1 |
IR2 |
φ40 |
120 |
2.0 |
5.3 |
116.5 |
62.28 |
＜1 |
|
SLB-40-150P |
M |
IR1 |
IR2 |
φ40 |
150 |
2.0 |
4.6 |
147.0 |
77.85 |
＜1 |
|
SLB-40-170P |
M |
IR1 |
IR2 |
φ40 |
170 |
2.0 |
4.3 |
167.2 |
88.23 |
＜1 |
|
SLB-40-200P |
M |
IR1 |
IR2 |
φ40 |
200 |
2.0 |
3.9 |
197.4 |
103.80 |
＜1 |
|
SLB-40-250P |
M |
IR1 |
IR2 |
φ40 |
250 |
2.0 |
3.6 |
247.7 |
129.75 |
＜1 |
|
SLB-40-300P |
M |
IR1 |
IR2 |
φ40 |
300 |
2.0 |
3.3 |
297.7 |
155.70 |
＜1 |
|
SLB-40-350P |
M |
IR1 |
IR2 |
φ40 |
350 |
2.0 |
3.1 |
348.0 |
181.65 |
＜1 |
|
SLB-40-400P |
M |
IR1 |
IR2 |
φ40 |
400 |
2.0 |
3.0 |
398.0 |
207.60 |
＜1 |
|
SLB-40-450P |
M |
IR1 |
IR2 |
φ40 |
450 |
2.0 |
2.9 |
448.1 |
233.55 |
＜3 |
|
SLB-40-500P |
M |
IR1 |
IR2 |
φ40 |
500 |
2.0 |
2.8 |
498.2 |
259.50 |
＜3 |
|
SLB-40-1000P |
M |
IR1 |
IR2 |
φ40 |
1000 |
2.0 |
2.4 |
998.4 |
519.00 |
＜3 |
|
SLB-30-35P |
M |
IR1 |
IR2 |
φ30 |
35 |
2.0 |
9.9 |
28.5 |
18.17 |
＜1 |
|
SLB-30-40P |
M |
IR1 |
IR2 |
φ30 |
40 |
2.0 |
8.4 |
34.5 |
20.76 |
＜1 |
|
SLB-30-50P |
M |
IR1 |
IR2 |
φ30 |
50 |
2.0 |
6.8 |
45.5 |
25.95 |
＜1 |
|
SLB-30-60P |
M |
IR1 |
IR2 |
φ30 |
60 |
2.0 |
5.9 |
56.1 |
31.14 |
＜1 |
|
SLB-30-70P |
M |
IR1 |
IR2 |
φ30 |
70 |
2.0 |
5.2 |
66.5 |
36.33 |
＜1 |
|
SLB-30-80P |
M |
IR1 |
IR2 |
φ30 |
80 |
2.0 |
4.8 |
76.8 |
41.52 |
＜1 |
|
SLB-30-90P |
M |
IR1 |
IR2 |
φ30 |
90 |
2.0 |
4.5 |
87.1 |
46.71 |
＜1 |
|
SLB-30-100P |
M |
IR1 |
IR2 |
φ30 |
100 |
2.0 |
4.2 |
97.2 |
51.90 |
＜1 |
|
SLB-30-120P |
M |
IR1 |
IR2 |
φ30 |
120 |
2.0 |
3.8 |
117.5 |
62.28 |
＜1 |
|
SLB-30-150P |
M |
IR1 |
IR2 |
φ30 |
150 |
2.0 |
3.5 |
147.7 |
77.85 |
＜1 |
|
SLB-30-170P |
M |
IR1 |
IR2 |
φ30 |
170 |
2.0 |
3.3 |
167.8 |
88.23 |
＜1 |
|
SLB-30-200P |
M |
IR1 |
IR2 |
φ30 |
200 |
2.0 |
3.1 |
198.0 |
103.80 |
＜1 |
|
SLB-30-220P |
M |
IR1 |
IR2 |
φ30 |
220 |
2.0 |
3.0 |
218.0 |
114.18 |
＜1 |
|
SLB-30-250P |
M |
IR1 |
IR2 |
φ30 |
250 |
2.0 |
2.9 |
248.1 |
129.75 |
＜1 |
|
SLB-30-300P |
M |
IR1 |
IR2 |
φ30 |
300 |
2.0 |
2.7 |
298.2 |
155.70 |
＜1 |
|
SLB-30-350P |
M |
IR1 |
IR2 |
φ30 |
350 |
2.0 |
2.6 |
348.3 |
181.65 |
＜3 |
|
SLB-30-400P |
M |
IR1 |
IR2 |
φ30 |
400 |
2.0 |
2.5 |
398.2 |
207.60 |
＜3 |
|
SLB-30-450P |
M |
IR1 |
IR2 |
φ30 |
450 |
2.0 |
2.5 |
448.4 |
233.55 |
＜3 |
|
SLB-30-500P |
M |
IR1 |
IR2 |
φ30 |
500 |
2.0 |
2.4 |
498.4 |
259.50 |
＜3 |
|
SLB-30-600P |
M |
IR1 |
IR2 |
φ30 |
600 |
2.0 |
2.4 |
598.4 |
311.40 |
＜3 |
|
SLB-30-700P |
M |
IR1 |
IR2 |
φ30 |
700 |
2.0 |
2.3 |
698.5 |
363.30 |
＜3 |
|
SLB-30-800P |
M |
IR1 |
IR2 |
φ30 |
800 |
2.0 |
2.3 |
798.5 |
415.20 |
＜3 |
|
SLB-30-900P |
M |
IR1 |
IR2 |
φ30 |
900 |
2.0 |
2.2 |
898.5 |
467.10 |
＜3 |
|
SLB-30-1000P |
M |
IR1 |
IR2 |
φ30 |
1000 |
2.0 |
2.2 |
998.5 |
519.00 |
＜3 |
|
SLB-30-1200P |
M |
IR1 |
IR2 |
φ30 |
1200 |
2.0 |
2.2 |
1198.6 |
622.80 |
＜3 |
|
SLB-30-1500P |
M |
IR1 |
IR2 |
φ30 |
1500 |
2.0 |
2.1 |
1498.6 |
778.50 |
＜3 |
|
SLB-30-2000P |
M |
IR1 |
IR2 |
φ30 |
2000 |
2.0 |
2.1 |
1998.6 |
1038.00 |
＜3 |
|
SLB-30-2500P |
M |
IR1 |
IR2 |
φ30 |
2500 |
2.0 |
2.1 |
2498.6 |
1297.50 |
＜3 |
|
SLB-30-3000P |
M |
IR1 |
IR2 |
φ30 |
3000 |
2.0 |
2.1 |
2998.6 |
1557.00 |
＜3 |
|
SLB-30-4000P |
M |
IR1 |
IR2 |
φ30 |
4000 |
2.0 |
2.1 |
3998.6 |
2076.00 |
＜3 |
|
SLB-30-5000P |
M |
IR1 |
IR2 |
φ30 |
5000 |
2.0 |
2.1 |
4998.6 |
2595.00 |
＜3 |
|
SLB-40-50P |
M |
IR1 |
IR2 |
φ40 |
50 |
2.0 |
11.4 |
42.5 |
25.95 |
＜1 |
|
SLB-40-60P |
M |
IR1 |
IR2 |
φ40 |
60 |
2.0 |
9.3 |
53.9 |
31.14 |
＜1 |
|
SLB-40-70P |
M |
IR1 |
IR2 |
φ40 |
70 |
2.0 |
8.0 |
64.7 |
36.33 |
＜1 |
|
SLB-40-80P |
M |
IR1 |
IR2 |
φ40 |
80 |
2.0 |
7.1 |
75.3 |
41.52 |
＜1 |
|
SLB-40-90P |
M |
IR1 |
IR2 |
φ40 |
90 |
2.0 |
6.5 |
85.7 |
46.71 |
＜1 |
|
SLB-40-100P |
M |
IR1 |
IR2 |
φ40 |
100 |
2.0 |
6.0 |
96.0 |
51.90 |
＜1 |
|
SLB-40-120P |
M |
IR1 |
IR2 |
φ40 |
120 |
2.0 |
5.3 |
116.5 |
62.28 |
＜1 |
|
SLB-40-150P |
M |
IR1 |
IR2 |
φ40 |
150 |
2.0 |
4.6 |
147.0 |
77.85 |
＜1 |
|
SLB-40-170P |
M |
IR1 |
IR2 |
φ40 |
170 |
2.0 |
4.3 |
167.2 |
88.23 |
＜1 |
|
SLB-40-200P |
M |
IR1 |
IR2 |
φ40 |
200 |
2.0 |
3.9 |
197.4 |
103.80 |
＜1 |
|
SLB-40-250P |
M |
IR1 |
IR2 |
φ40 |
250 |
2.0 |
3.6 |
247.7 |
129.75 |
＜1 |
|
SLB-40-300P |
M |
IR1 |
IR2 |
φ40 |
300 |
2.0 |
3.3 |
297.7 |
155.70 |
＜1 |
|
SLB-40-350P |
M |
IR1 |
IR2 |
φ40 |
350 |
2.0 |
3.1 |
348.0 |
181.65 |
＜1 |
|
SLB-40-400P |
M |
IR1 |
IR2 |
φ40 |
400 |
2.0 |
3.0 |
398.0 |
207.60 |
＜1 |
|
SLB-40-450P |
M |
IR1 |
IR2 |
φ40 |
450 |
2.0 |
2.9 |
448.1 |
233.55 |
＜3 |
|
SLB-40-500P |
M |
IR1 |
IR2 |
φ40 |
500 |
2.0 |
2.8 |
498.2 |
259.50 |
＜3 |
|
SLB-40-1000P |
M |
IR1 |
IR2 |
φ40 |
1000 |
2.0 |
2.4 |
998.4 |
519.00 |
＜3 |
Φ50~Φ60mm BK7系列 Optosigma平凸透镜
|
无镀膜 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
型号 |
可见光 |
近红外 |
红外 |
|||||||
|
SLB-50-70P |
M |
IR1 |
IR2 |
φ50 |
70 |
3.0 |
13.0 |
61.5 |
36.33 |
＜1 |
|
SLB-50-80P |
M |
IR1 |
IR2 |
φ50 |
80 |
3.0 |
11.4 |
72.5 |
41.52 |
＜1 |
|
SLB-50-90P |
M |
IR1 |
IR2 |
φ50 |
90 |
3.0 |
10.3 |
83.2 |
46.71 |
＜1 |
|
SLB-50-100P |
M |
IR1 |
IR2 |
φ50 |
100 |
3.0 |
9.4 |
93.8 |
51.90 |
＜1 |
|
SLB-50-120P |
M |
IR1 |
IR2 |
φ50 |
120 |
3.0 |
8.2 |
114.6 |
62.28 |
＜1 |
|
SLB-50-150P |
M |
IR1 |
IR2 |
φ50 |
150 |
3.0 |
7.1 |
145.3 |
77.85 |
＜1 |
|
SLB-50-170P |
M |
IR1 |
IR2 |
φ50 |
170 |
3.0 |
6.6 |
165.6 |
88.23 |
＜1 |
|
SLB-50-200P |
M |
IR1 |
IR2 |
φ50 |
200 |
3.0 |
6.1 |
196.0 |
103.80 |
＜1 |
|
SLB-50-220P |
M |
IR1 |
IR2 |
φ50 |
220 |
3.0 |
5.8 |
216.2 |
114.18 |
＜1 |
|
SLB-50-250P |
M |
IR1 |
IR2 |
φ50 |
250 |
3.0 |
5.4 |
246.4 |
129.75 |
＜1 |
|
SLB-50-300P |
M |
IR1 |
IR2 |
φ50 |
300 |
3.0 |
5.0 |
296.7 |
155.70 |
＜1 |
|
SLB-50-350P |
M |
IR1 |
IR2 |
φ50 |
350 |
3.0 |
4.7 |
346.9 |
181.65 |
＜1 |
|
SLB-50-400P |
M |
IR1 |
IR2 |
φ50 |
400 |
3.0 |
4.5 |
397.0 |
207.60 |
＜1 |
|
SLB-50-450P |
M |
IR1 |
IR2 |
φ50 |
450 |
3.0 |
4.3 |
447.1 |
233.55 |
＜1 |
|
SLB-50-500P |
M |
IR1 |
IR2 |
φ50 |
500 |
3.0 |
4.2 |
497.2 |
259.50 |
＜1 |
|
SLB-50-600P |
M |
IR1 |
IR2 |
φ50 |
600 |
3.0 |
4.0 |
597.4 |
311.40 |
＜3 |
|
SLB-50-700P |
M |
IR1 |
IR2 |
φ50 |
700 |
3.0 |
3.9 |
697.5 |
363.30 |
＜3 |
|
SLB-50-800P |
M |
IR1 |
IR2 |
φ50 |
800 |
3.0 |
3.8 |
797.4 |
415.20 |
＜3 |
|
SLB-50-900P |
M |
IR1 |
IR2 |
φ50 |
900 |
3.0 |
3.7 |
897.6 |
467.10 |
＜3 |
|
SLB-50-1000P |
M |
IR1 |
IR2 |
φ50 |
1000 |
3.0 |
3.6 |
997.6 |
519.00 |
＜3 |
|
SLB-50-1200P |
M |
IR1 |
IR2 |
φ50 |
1200 |
3.0 |
3.5 |
1197.7 |
622.80 |
＜3 |
|
SLB-50-1500P |
M |
IR1 |
IR2 |
φ50 |
1500 |
3.0 |
3.4 |
1497.8 |
778.50 |
＜3 |
|
SLB-50-2000P |
M |
IR1 |
IR2 |
φ50 |
2000 |
3.0 |
3.3 |
1997.8 |
1038.00 |
＜3 |
|
SLB-50-2500P |
M |
IR1 |
IR2 |
φ50 |
2500 |
3.0 |
3.2 |
2497.9 |
1297.50 |
＜3 |
|
SLB-50-3000P |
M |
IR1 |
IR2 |
φ50 |
3000 |
3.0 |
3.2 |
2997.9 |
1557.00 |
＜3 |
|
SLB-50-4000P |
M |
IR1 |
IR2 |
φ50 |
4000 |
3.0 |
3.2 |
3997.9 |
2076.00 |
＜3 |
|
SLB-50-5000P |
M |
IR1 |
IR2 |
φ50 |
5000 |
3.0 |
3.1 |
4997.9 |
2595.00 |
＜3 |
|
SLB-50.8-70P |
M |
IR1 |
IR2 |
φ50.8 |
70 |
3.0 |
13.4 |
61.2 |
36.33 |
＜1 |
|
SLB-50.8-80P |
M |
IR1 |
IR2 |
φ50.8 |
80 |
3.0 |
11.7 |
72.3 |
41.52 |
＜1 |
|
SLB-50.8-90P |
M |
IR1 |
IR2 |
φ50.8 |
90 |
3.0 |
10.3 |
83.2 |
46.71 |
＜1 |
|
SLB-50.8-100P |
M |
IR1 |
IR2 |
φ50.8 |
100 |
3.0 |
9.6 |
93.7 |
51.90 |
＜1 |
|
SLB-50.8-120P |
M |
IR1 |
IR2 |
φ50.8 |
120 |
2.8 |
8.2 |
114.6 |
62.28 |
＜1 |
|
SLB-50.8-150P |
M |
IR1 |
IR2 |
φ50.8 |
150 |
2.8 |
7.1 |
145.3 |
77.85 |
＜1 |
|
SLB-50.8-170P |
M |
IR1 |
IR2 |
φ50.8 |
170 |
3.0 |
6.6 |
165.7 |
88.23 |
＜1 |
|
SLB-50.8-200P |
M |
IR1 |
IR2 |
φ50.8 |
200 |
2.9 |
6.1 |
196.0 |
103.80 |
＜1 |
|
SLB-50.8-250P |
M |
IR1 |
IR2 |
φ50.8 |
250 |
2.9 |
5.4 |
246.4 |
129.75 |
＜1 |
|
SLB-50.8-300P |
M |
IR1 |
IR2 |
φ50.8 |
300 |
2.9 |
5.0 |
296.7 |
155.70 |
＜1 |
|
SLB-50.8-400P |
M |
IR1 |
IR2 |
φ50.8 |
400 |
3.0 |
4.5 |
397.0 |
207.60 |
＜1 |
|
SLB-50.8-500P |
M |
IR1 |
IR2 |
φ50.8 |
500 |
3.0 |
4.2 |
497.2 |
259.50 |
＜1 |
|
SLB-50.8-700P |
M |
IR1 |
IR2 |
φ50.8 |
700 |
3.0 |
3.9 |
697.4 |
363.30 |
＜3 |
|
SLB-50.8-1000P |
M |
IR1 |
IR2 |
φ50.8 |
1000 |
3.0 |
3.6 |
997.6 |
519.00 |
＜3 |
|
SLB-60-70P |
M |
IR1 |
IR2 |
φ60 |
70 |
3.0 |
18.8 |
57.6 |
36.33 |
＜1 |
|
SLB-60-80P |
M |
IR1 |
IR2 |
φ60 |
80 |
3.0 |
15.8 |
69.6 |
41.52 |
＜1 |
|
SLB-60-90P |
M |
IR1 |
IR2 |
φ60 |
90 |
3.0 |
13.9 |
80.8 |
46.71 |
＜1 |
|
SLB-60-100P |
M |
IR1 |
IR2 |
φ60 |
100 |
3.0 |
12.5 |
91.7 |
51.90 |
＜1 |
|
SLB-60-120P |
M |
IR1 |
IR2 |
φ60 |
120 |
3.0 |
10.7 |
113.0 |
62.28 |
＜1 |
|
SLB-60-150P |
M |
IR1 |
IR2 |
φ60 |
150 |
3.0 |
9.0 |
144.1 |
77.85 |
＜1 |
|
SLB-60-170P |
M |
IR1 |
IR2 |
φ60 |
170 |
3.0 |
8.3 |
164.6 |
88.23 |
＜1 |
|
SLB-60-200P |
M |
IR1 |
IR2 |
φ60 |
200 |
3.0 |
7.4 |
195.1 |
103.80 |
＜1 |
|
SLB-60-250P |
M |
IR1 |
IR2 |
φ60 |
250 |
3.0 |
6.5 |
245.7 |
129.75 |
＜1 |
|
SLB-60-300P |
M |
IR1 |
IR2 |
φ60 |
300 |
3.0 |
5.9 |
296.1 |
155.70 |
＜1 |
|
SLB-60-400P |
M |
IR1 |
IR2 |
φ60 |
400 |
3.0 |
5.2 |
396.6 |
207.60 |
＜1 |
|
SLB-60-500P |
M |
IR1 |
IR2 |
φ60 |
500 |
3.0 |
4.7 |
496.9 |
259.50 |
＜1 |
|
SLB-60-1000P |
M |
IR1 |
IR2 |
φ60 |
1000 |
3.0 |
3.9 |
997.5 |
519.00 |
＜3 |
Φ80~Φ100mm BK7系列
|
无镀膜 |
防反射膜的型号指定 |
外径 φD |
焦距f |
边缘厚度te |
中心厚度tc |
后焦距fb |
曲率半径r |
偏心 |
||
|
型号 |
可见光 |
近红外 |
红外 |
|||||||
|
SLB-80-100P |
M |
IR1 |
IR2 |
φ80 |
100 |
3.0 |
21.8 |
85.6 |
51.90 |
＜1 |
|
SLB-80-150P |
M |
IR1 |
IR2 |
φ80 |
150 |
3.0 |
14.1 |
140.8 |
77.85 |
＜1 |
|
SLB-80-200P |
M |
IR1 |
IR2 |
φ80 |
200 |
3.0 |
11.0 |
192.7 |
103.80 |
＜1 |
|
SLB-80-250P |
M |
IR1 |
IR2 |
φ80 |
250 |
3.0 |
9.3 |
243.9 |
129.75 |
＜1 |
|
SLB-80-300P |
M |
IR1 |
IR2 |
φ80 |
300 |
3.0 |
8.2 |
294.6 |
155.70 |
＜1 |
|
SLB-80-350P |
M |
IR1 |
IR2 |
φ80 |
350 |
3.0 |
7.5 |
345.1 |
181.65 |
＜1 |
|
SLB-80-400P |
M |
IR1 |
IR2 |
φ80 |
400 |
3.0 |
6.9 |
395.5 |
207.60 |
＜1 |
|
SLB-80-500P |
M |
IR1 |
IR2 |
φ80 |
500 |
3.0 |
6.1 |
496.0 |
259.50 |
＜1 |
|
SLB-80-700P |
M |
IR1 |
IR2 |
φ80 |
700 |
3.0 |
5.2 |
696.6 |
363.30 |
＜1 |
|
SLB-80-800P |
M |
IR1 |
IR2 |
φ80 |
800 |
3.0 |
4.9 |
796.8 |
415.20 |
＜1 |
|
SLB-80-1000P |
M |
IR1 |
IR2 |
φ80 |
1000 |
3.0 |
4.5 |
997.0 |
519.00 |
＜3 |
|
SLB-100-150P |
M |
IR1 |
IR2 |
φ100 |
150 |
3.0 |
21.2 |
136.1 |
77.85 |
＜1 |
|
SLB-100-200P |
M |
IR1 |
IR2 |
φ100 |
200 |
3.0 |
15.8 |
189.6 |
103.80 |
＜1 |
|
SLB-100-250P |
M |
IR1 |
IR2 |
φ100 |
250 |
3.0 |
13.0 |
241.4 |
129.75 |
＜1 |
|
SLB-100-300P |
M |
IR1 |
IR2 |
φ100 |
300 |
3.0 |
11.2 |
292.6 |
155.70 |
＜1 |
|
SLB-100-350P |
M |
IR1 |
IR2 |
φ100 |
350 |
3.0 |
10.0 |
343.4 |
181.65 |
＜1 |
|
SLB-100-400P |
M |
IR1 |
IR2 |
φ100 |
400 |
3.0 |
9.1 |
394.4 |
207.60 |
＜1 |
|
SLB-100-500P |
M |
IR1 |
IR2 |
φ100 |
500 |
3.0 |
7.9 |
494.8 |
259.50 |
＜1 |
|
SLB-100-600P |
M |
IR1 |
IR2 |
φ100 |
600 |
3.0 |
7.0 |
595.4 |
311.40 |
＜1 |
|
SLB-100-700P |
M |
IR1 |
IR2 |
φ100 |
700 |
3.0 |
6.5 |
695.7 |
363.30 |
＜1 |
|
SLB-100-800P |
M |
IR1 |
IR2 |
φ100 |
800 |
3.0 |
6.0 |
796.0 |
415.20 |
＜1 |
|
SLB-100-1000P |
M |
IR1 |
IR2 |
φ100 |
1000 |
3.0 |
5.4 |
996.4 |
519.00 |
＜1 |
|
SLB-80-100P |
M |
IR1 |
IR2 |
φ80 |
100 |
3.0 |
21.8 |
85.6 |
51.90 |
＜1 |
|
SLB-80-150P |
M |
IR1 |
IR2 |
φ80 |
150 |
3.0 |
14.1 |
140.8 |
77.85 |
＜1 |
|
SLB-80-200P |
M |
IR1 |
IR2 |
φ80 |
200 |
3.0 |
11.0 |
192.7 |
103.80 |
＜1 |
|
SLB-80-250P |
M |
IR1 |
IR2 |
φ80 |
250 |
3.0 |
9.3 |
243.9 |
129.75 |
＜1 |
|
SLB-80-300P |
M |
IR1 |
IR2 |
φ80 |
300 |
3.0 |
8.2 |
294.6 |
155.70 |
＜1 |
|
SLB-80-350P |
M |
IR1 |
IR2 |
φ80 |
350 |
3.0 |
7.5 |
345.1 |
181.65 |
＜1 |
|
SLB-80-400P |
M |
IR1 |
IR2 |
φ80 |
400 |
3.0 |
6.9 |
395.5 |
207.60 |
＜1 |
|
SLB-80-500P |
M |
IR1 |
IR2 |
φ80 |
500 |
3.0 |
6.1 |
496.0 |
259.50 |
＜1 |
|
SLB-80-700P |
M |
IR1 |
IR2 |
φ80 |
700 |
3.0 |
5.2 |
696.6 |
363.30 |
＜1 |
|
SLB-80-800P |
M |
IR1 |
IR2 |
φ80 |
800 |
3.0 |
4.9 |
796.8 |
415.20 |
＜1 |
|
SLB-80-1000P |
M |
IR1 |
IR2 |
φ80 |
1000 |
3.0 |
4.5 |
997.0 |
519.00 |
＜3 |
|
SLB-100-150P |
M |
IR1 |
IR2 |
φ100 |
150 |
3.0 |
21.2 |
136.1 |
77.85 |
＜1 |
|
SLB-100-200P |
M |
IR1 |
IR2 |
φ100 |
200 |
3.0 |
15.8 |
189.6 |
103.80 |
＜1 |
|
SLB-100-250P |
M |
IR1 |
IR2 |
φ100 |
250 |
3.0 |
13.0 |
241.4 |
129.75 |
＜1 |
|
SLB-100-300P |
M |
IR1 |
IR2 |
φ100 |
300 |
3.0 |
11.2 |
292.6 |
155.70 |
＜1 |
|
SLB-100-350P |
M |
IR1 |
IR2 |
φ100 |
350 |
3.0 |
10.0 |
343.4 |
181.65 |
＜1 |
|
SLB-100-400P |
M |
IR1 |
IR2 |
φ100 |
400 |
3.0 |
9.1 |
394.4 |
207.60 |
＜1 |
|
SLB-100-500P |
M |
IR1 |
IR2 |
φ100 |
500 |
3.0 |
7.9 |
494.8 |
259.50 |
＜1 |
|
SLB-100-600P |
M |
IR1 |
IR2 |
φ100 |
600 |
3.0 |
7.0 |
595.4 |
311.40 |
＜1 |
|
SLB-100-700P |
M |
IR1 |
IR2 |
φ100 |
700 |
3.0 |
6.5 |
695.7 |
363.30 |
＜1 |
|
SLB-100-800P |
M |
IR1 |
IR2 |
φ100 |
800 |
3.0 |
6.0 |
796.0 |
415.20 |
＜1 |
|
SLB-100-1000P |
M |
IR1 |
IR2 |
φ100 |
1000 |
3.0 |
5.4 |
996.4 |
519.00 |
＜1 |
|
SLB-80-100P |
M |
IR1 |
IR2 |
φ80 |
100 |
3.0 |
21.8 |
85.6 |
51.90 |
＜1 |
|
SLB-80-150P |
M |
IR1 |
IR2 |
φ80 |
150 |
3.0 |
14.1 |
140.8 |
77.85 |
＜1 |
|
SLB-80-200P |
M |
IR1 |
IR2 |
φ80 |
200 |
3.0 |
11.0 |
192.7 |
103.80 |
＜1 |
|
SLB-80-250P |
M |
IR1 |
IR2 |
φ80 |
250 |
3.0 |
9.3 |
243.9 |
129.75 |
＜1 |
|
SLB-80-300P |
M |
IR1 |
IR2 |
φ80 |
300 |
3.0 |
8.2 |
294.6 |
155.70 |
＜1 |
|
SLB-80-350P |
M |
IR1 |
IR2 |
φ80 |
350 |
3.0 |
7.5 |
345.1 |
181.65 |
＜1 |
|
SLB-80-400P |
M |
IR1 |
IR2 |
φ80 |
400 |
3.0 |
6.9 |
395.5 |
207.60 |
＜1 |
|
SLB-80-500P |
M |
IR1 |
IR2 |
φ80 |
500 |
3.0 |
6.1 |
496.0 |
259.50 |
＜1 |
|
SLB-80-700P |
M |
IR1 |
IR2 |
φ80 |
700 |
3.0 |
5.2 |
696.6 |
363.30 |
＜1 |
|
SLB-80-800P |
M |
IR1 |
IR2 |
φ80 |
800 |
3.0 |
4.9 |
796.8 |
415.20 |
＜1 |
|
SLB-80-1000P |
M |
IR1 |
IR2 |
φ80 |
1000 |
3.0 |
4.5 |
997.0 |
519.00 |
＜3 |
|
SLB-100-150P |
M |
IR1 |
IR2 |
φ100 |
150 |
3.0 |
21.2 |
136.1 |
77.85 |
＜1 |
|
SLB-100-200P |
M |
IR1 |
IR2 |
φ100 |
200 |
3.0 |
15.8 |
189.6 |
103.80 |
＜1 |
|
SLB-100-250P |
M |
IR1 |
IR2 |
φ100 |
250 |
3.0 |
13.0 |
241.4 |
129.75 |
＜1 |
|
SLB-100-300P |
M |
IR1 |
IR2 |
φ100 |
300 |
3.0 |
11.2 |
292.6 |
155.70 |
＜1 |
|
SLB-100-350P |
M |
IR1 |
IR2 |
φ100 |
350 |
3.0 |
10.0 |
343.4 |
181.65 |
＜1 |
|
SLB-100-400P |
M |
IR1 |
IR2 |
φ100 |
400 |
3.0 |
9.1 |
394.4 |
207.60 |
＜1 |
|
SLB-100-500P |
M |
IR1 |
IR2 |
φ100 |
500 |
3.0 |
7.9 |
494.8 |
259.50 |
＜1 |
|
SLB-100-600P |
M |
IR1 |
IR2 |
φ100 |
600 |
3.0 |
7.0 |
595.4 |
311.40 |
＜1 |
|
SLB-100-700P |
M |
IR1 |
IR2 |
φ100 |
700 |
3.0 |
6.5 |
695.7 |
363.30 |
＜1 |
|
SLB-100-800P |
M |
IR1 |
IR2 |
φ100 |
800 |
3.0 |
6.0 |
796.0 |
415.20 |
＜1 |
|
SLB-100-1000P |
M |
IR1 |
IR2 |
φ100 |
1000 |
3.0 |
5.4 |
996.4 |
519.00 |
＜1 |
200/308/400消色差透镜
紫外消色差聚焦透镜是NA为0.1以下的透镜，对准直激光成像后的焦点光斑直径几乎接近衍射极限。没有使用吸收紫外光的玻璃或粘接剂，具有良好的耐光性。
查看详细
可见光气隙消色差聚焦双合透镜
可见光气隙消色差聚焦透镜不使用胶合透镜，而使用空气隙型消色差的聚光透镜。可以嵌入激光加工机械中，使用机内的532nm高输出激光进行同轴照明，作为聚光透镜使用。通过光学优化设计，校正了以532nm为中心的宽带范围内色差。
查看详细
ETL/EDL/NEDL准分子激光空气隙透镜
准分子激光空气隙透镜是在紫外光谱区域有高透过率的合成石英透镜构成的紫外激光用聚光透镜。没有使用吸收紫外光的玻璃或粘着剂，所以耐光性很好。248nm透镜由2枚或3枚球面透镜的组成，校正了球差和慧差。
查看详细
西格玛光机非球面平凸透镜
把平凸透镜的凸面改成非球面形状，可制作球差小的短焦距透镜，也就是OptoSigma非球面平凸透镜。西格玛光机非球面平凸透镜常被用于汇聚照明光，或准直点光源。
查看详细
